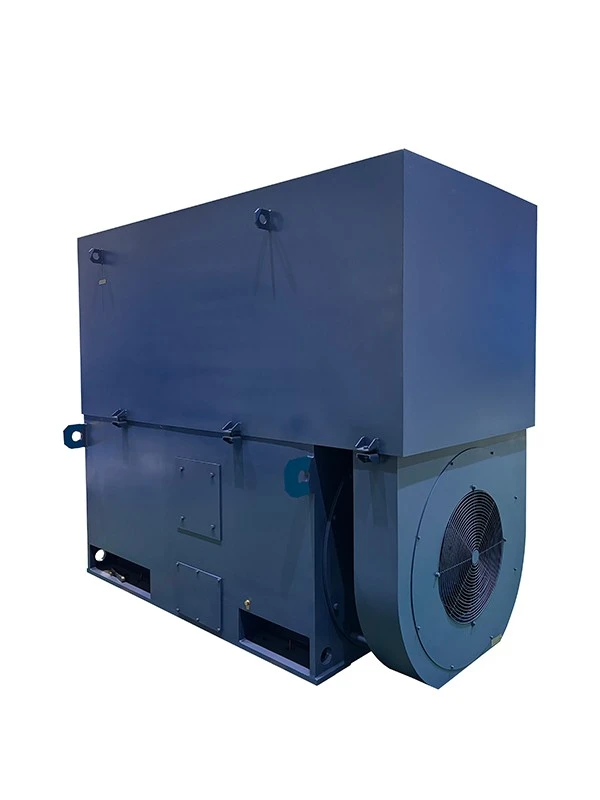

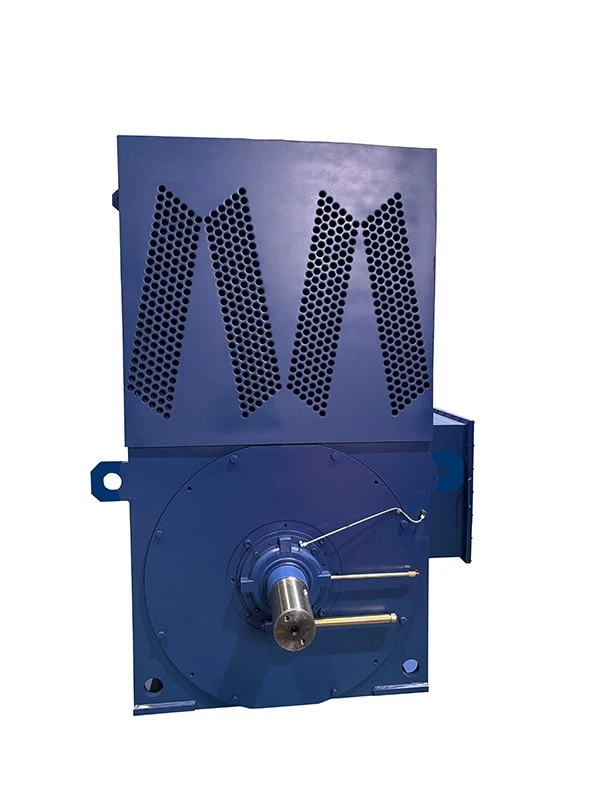

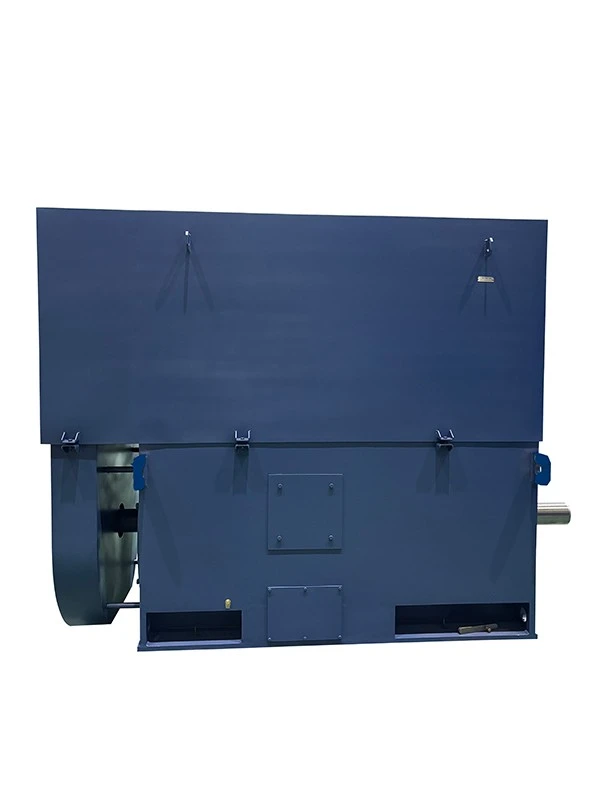

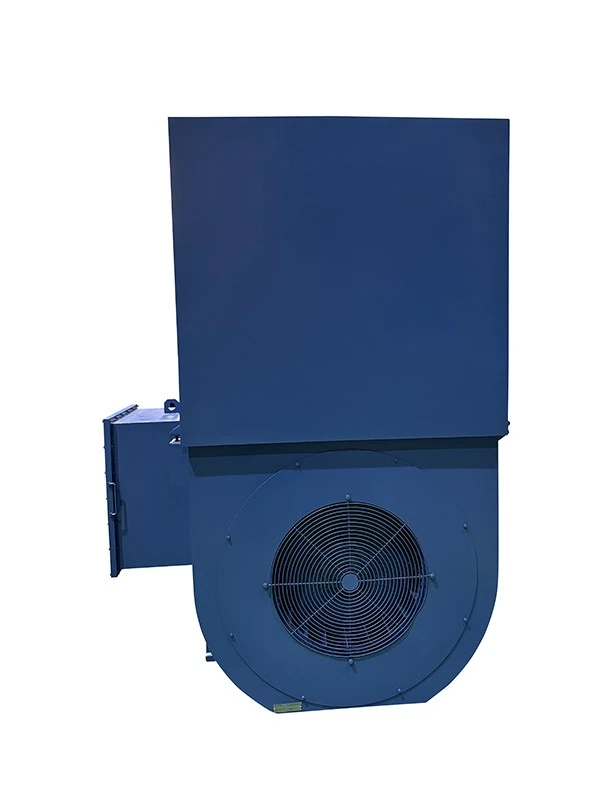

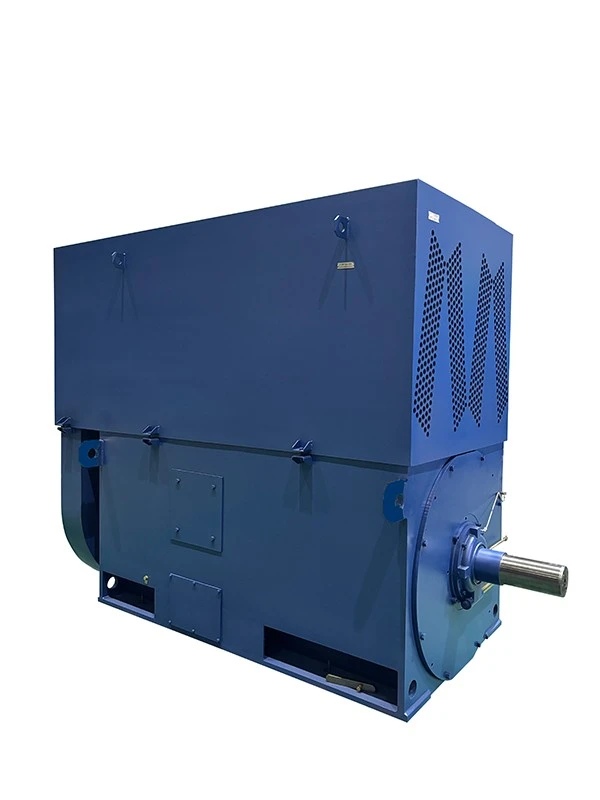

Motor Pompa Industri Tegangan Tinggi
Motor pompa industri bertegangan tinggi adalah "jantung" industri proses, dan keandalannya secara langsung memengaruhi keselamatan produksi dan efisiensi energi. Motor seri 3.3KV,6KV,10KV ini adalah sumber tenaga untuk peralatan utama di industri seperti minyak bumi, kimia, listrik, dan metalurgi. Desainnya harus memenuhi kondisi kerja yang ketat seperti tekanan tinggi, aliran tinggi, dan pengoperasian berkelanjutan.
Kirim permintaan
Deskripsi
Parameter teknis
Pengantar Singkat
Motor seri ini, indikator efisiensinya dapat memenuhi efisiensi energi level 3 yaitu IE3, dan juga dapat memenuhiefisiensi energi tingkat 4, yaitu IE4, yang ditentukan dalam standar Cina GB 755 dan standar internasional IEC 60034.
motor pompa industri tegangan tinggi, biasanya diberi nilai 6kV, 10kV, dan lebih tinggi, diproduksi sesuai dengan serangkaian standar nasional (GB), standar industri (JB), dan standar Komisi Elektroteknik Internasional (IEC), yang mencakup desain, kinerja, keselamatan, efisiensi energi, dan aspek lainnya.
Standar umum dasar adalah sebagai berikut
1.GB/T 755-2019
Kuota dan Kinerja Mesin Listrik Berputar - Persyaratan Kinerja Dasar, Sistem Kerja (S1~S10), Batas Kenaikan Suhu (seperti Insulasi kelas F-Kurang dari atau sama dengan 105K) motor.
-Setara dengan IEC 60034-1
2.GB/T 997-2008
Struktur Mesin Listrik Berputar dan Jenis Instalasi (Kode IM)
-Tentukan metode pemasangan motor (seperti pemasangan kaki IM B3, pemasangan flensa IM B5).
3.GB 1971-2006
Penandaan Terminal dan Arah Putaran Mesin Listrik Berputar
-Identifikasi terminal terpadu (U/V/W) dan definisi arah rotasi.
Standar Pengujian dan Inspeksi
1.GB/T 1029-2021
Metode Pengujian Motor Sinkron Tiga fasa
-Proses pengujian tanpa-beban, korsleting, kenaikan suhu, efisiensi, dll. pada motor sinkron.
2. GB/T 1032-2021
Metode Uji Motor Asinkron Tiga Fasa, seperti motor pompa industri tegangan tinggi
-Metode pengujian efisiensi seperti metode masukan-keluaran dan metode pemisahan kerugian untuk motor asinkron.
3.GB/T 22719.1-2019
Uji isolasi antar putaran untuk belitan tertanam yang longgar pada motor AC-tegangan rendah
-Uji tegangan ketahanan antar putaran (metode tegangan impuls)
Pabrikan motor tegangan tinggi-dalam negeri harus benar-benar mengikuti standar di atas, dengan fokus pada:
1. Efisiensi Energi (GB 30254)
Isolasi (JB/T 7593)
Getaran (GB/T 10068);
2. Industri khusus (seperti minyak bumi dan tenaga nuklir) memerlukan penambahan standar industri;
3. Produk ekspor harus memenuhi standar internasional seperti IEC atau API.
Perusahaan produksi harus lulus uji jenis (seperti kenaikan suhu, ketahanan tekanan, getaran) dan audit pabrik secara berkala untuk memastikan kepatuhan.

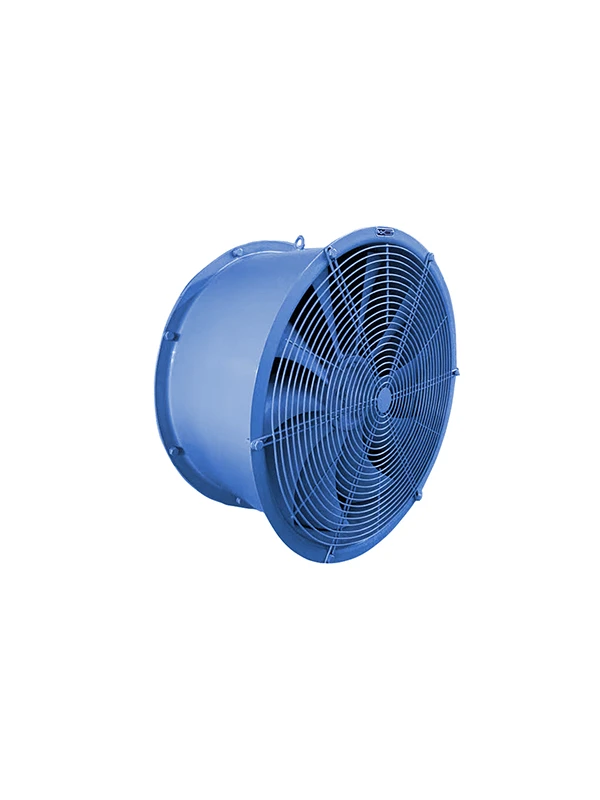

Ukuran bingkai |
Kipas eksternal | Penggemar batin |
|
4 tiang ke atas |
2 tiang |
||
| 355 | Kipas sentrifugal tipe baskom, rotasi dua arah |
Kipas sentrifugal baling-baling, rotasi searah, harap dicatat kapan pemesanan |
Kipas sentrifugal radial rotasi dua arah |
| 400 | |||
| 450 | |||
| 500 | |||
| 560 | |||
| Toleransi Kinerja Listrik | |
| Kinerja listrik | Toleransi |
| Efisiensi | -10%*(1-n) |
| Faktor kekuatan | :-1/6(1-cosφ),最小绝对值(min)为0,02 |
| Rasio slip | ±20% |
| Torsi rotor terkunci | -15% |
| Tarik-torsi ke atas | -15% |
| Torsi kerusakan | -10% |
| Arus rotor terkunci | 20% |
| Momen inersia | ±10% |
| Spesifikasi Motor Tegangan Tinggi Seri YKK 6KV | |||||||||||
| Model | Beban 100%. | pertama | Tst | Tmaks. | Momen inersia (kg · m²) | Berat (kg) | |||||
| Kekuatan (kW) |
Saat ini (A) |
Kecepatan (putaran/menit) |
Ef. (%) |
P.F. cos.φ |
Di dalam | Tn | Tn | Motor | Memuat | ||
| YKK3551-2 | 220 | 25.9 | 2975 | 94.0 | 0.87 | 6.4 | 1.4 | 3.1 | 2 | 48 | 2160 |
| YKK3552-2 | 250 | 29.1 | 2975 | 94.1 | 0.88 | 6.5 | 1.4 | 3.1 | 2 | 52 | 2240 |
| YKK3553-2 | 280 | 32.4 | 2975 | 94.4 | 0.88 | 6.8 | 1.5 | 3.2 | 2 | 63 | 2320 |
| YKK3554-2 | 315 | 36.4 | 2975 | 94.5 | 0.88 | 7.0 | 1.7 | 3.3 | 2 | 85 | 2600 |
| YKK4002-2 | 355 | 39.9 | 2979 | 94.1 | 0.91 | 6.3 | 1.0 | 3.1 | 4 | 55 | 2900 |
| YKK4003-2 | 400 | 45.8 | 2979 | 94.4 | 0.89 | 6.4 | 1.0 | 3.2 | 4 | 62 | 2980 |
| YKK4004-2 | 450 | 51.5 | 2979 | 94.5 | 0.89 | 6.3 | 1.1 | 3.2 | 5 | 78 | 3080 |
| YKK4005-2 | 500 | 56.5 | 2979 | 94.7 | 0.90 | 6.6 | 1.2 | 3.2 | 5 | 92 | 3180 |
| YKK4502-2 | 560 | 62.3 | 2978 | 95.1 | 0.91 | 5.2 | 1.0 | 2.5 | 8 | 86 | 3850 |
| YKK4503-2 | 630 | 70.7 | 2980 | 95.3 | 0.90 | 5.6 | 1.1 | 2.7 | 8 | 106 | 3980 |
| YKK4504-2 | 710 | 79.6 | 2980 | 95.4 | 0.90 | 5.8 | 1.1 | 2.8 | 9 | 112 | 4150 |
| YKK4505-2 | 800 | 89.5 | 2981 | 95.6 | 0.90 | 6.0 | 1.2 | 2.9 | 10 | 150 | 4390 |
| YKK5001-2 | 900 | 99.6 | 2983 | 95.6 | 0.91 | 6.7 | 1.0 | 3.3 | 12 | 126 | 6030 |
| YKK5002-2 | 1000 | 110.5 | 2983 | 95.7 | 0.91 | 7.0 | 1.1 | 3.4 | 12 | 157 | 6050 |
| YKK5003-2 | 1120 | 123.5 | 2983 | 95.9 | 0.91 | 6.9 | 1.1 | 3.4 | 13 | 176 | 6180 |
| YKK5004-2 | 1250 | 136.5 | 2983 | 96.0 | 0.92 | 6.9 | 1.1 | 3.3 | 14 | 197 | 6390 |
| YKK5601-2 | 1400 | 155.0 | 2980 | 95.4 | 0.91 | 6.0 | 1.7 | 2.8 | 26 | 369 | 7250 |
| YKK5602-2 | 1600 | 177.0 | 2980 | 95.6 | 0.91 | 5.3 | 1.5 | 2.5 | 26 | 375 | 7250 |
| YKK5603-2 | 1800 | 197.0 | 2980 | 95.7 | 0.92 | 5.4 | 1.5 | 2.6 | 28 | 386 | 7550 |
| YKK6301-2 | 2000 | 223.0 | 2984 | 95.8 | 0.90 | 4.5 | 1.1 | 2.3 | 29 | 366 | 9800 |
| YKK6302-2 | 2240 | 247.0 | 2984 | 96.0 | 0.91 | 4.4 | 1.1 | 2.2 | 33 | 345 | 10200 |
| YKK6303-2 | 2500 | 275.0 | 2984 | 96.2 | 0.91 | 4.7 | 1.2 | 2.3 | 36 | 425 | 10600 |
| YKK3551-4 | 185 | 22.3 | 1480 | 92.8 | 0.86 | 6.5 | 1.3 | 2.7 | 4 | 151 | 1980 |
| YKK3552-4 | 200 | 23.8 | 1480 | 92.9 | 0.87 | 6.1 | 1.2 | 2.5 | 4 | 150 | 1980 |
| YKK3553-4 | 220 | 26.1 | 1480 | 93.1 | 0.87 | 6.3 | 1.2 | 2.6 | 4 | 164 | 2040 |
| YKK3554-4 | 250 | 29.6 | 1480 | 93.5 | 0.87 | 6.5 | 1.3 | 2.6 | 5 | 203 | 2110 |
| YKK4002-4 | 280 | 33.2 | 1485 | 93.2 | 0.87 | 5.7 | 1.7 | 2.5 | 8 | 288 | 2660 |
| YKK4003-4 | 315 | 36.9 | 1485 | 93.4 | 0.88 | 5.6 | 1.8 | 2.4 | 8 | 343 | 2710 |
| YKK4004-4 | 355 | 41.5 | 1485 | 93.6 | 0.88 | 5.5 | 1.7 | 2.4 | 9 | 365 | 2790 |
| YKK4005-4 | 400 | 46.6 | 1485 | 93.9 | 0.88 | 5.5 | 1.8 | 2.3 | 10 | 437 | 2870 |
| Spesifikasi Motor Tegangan Tinggi Seri YKK 6KV | |||||||||||
| Model | Beban 100%. | pertama | Tst | Tmaks. | Momen inersia (kg · m²) | Berat (kg) | |||||
| Kekuatan (kW) |
Saat ini (A) |
Kecepatan (putaran/menit) |
Ef. (%) |
P.F. cos.φ |
Di dalam | Tn | Tn | Motor | Memuat | ||
| YKK5603-4 | 1600 | 179.3 | 1491 | 95.4 | 0.90 | 7.0 | 1.8 | 2.9 | 66 | 1706 | 6900 |
| YKK6301-4 | 1800 | 200.0 | 1489 | 95.5 | 0.91 | 6.2 | 1.3 | 2.6 | 85 | 1366 | 9300 |
| YKK6302-4 | 2000 | 221.0 | 1489 | 95.7 | 0.91 | 6.0 | 1.3 | 2.5 | 92 | 1521 | 9700 |
| YKK6303-4 | 2240 | 248.0 | 1489 | 95.89 | 0.91 | 6.6 | 1.4 | 2.7 | 100 | 1845 | 10200 |
| YKK4001-6 | 185 | 22.5 | 990 | 2.9 | 0.85 | 6.1 | 1.5 | 2.6 | 10 | 378 | 2710 |
| YKK4002-6 | 200 | 24.1 | 990 | 92.9 | 0.86 | 5.7 | 1.4 | 2.4 | 10 | 381 | 2710 |
| YKK4003-6 | 220 | 26.7 | 990 | 93.2 | 0.85 | 6.2 | 1.6 | 2.6 | 10 | 481 | 2770 |
| YKK4004-6 | 250 | 29.9 | 990 | 93.4 | 0.86 | 5.9 | 1.6 | 2.5 | 11 | 547 | 2840 |
| YKK4005-6 | 280 | 33.5 | 990 | 93.6 | 0.86 | 5.8 | 1.5 | 2.4 | 12 | 574 | 2920 |
| YKK4006-6 | 315 | 37.1 | 990 | 93.9 | 0.87 | 5.7 | 1.5 | 2.3 | 13 | 646 | 3010 |
| YKK4502-6 | 355 | 42.4 | 990 | 93.7 | 0.86 | 5.8 | 1.3 | 2.5 | 18 | 626 | 3700 |
| YKK4503-6 | 400 | 47.7 | 990 | 93.9 | 0.86 | 5.9 | 1.3 | 2.5 | 19 | 706 | 3800 |
| YKK4504-6 | 450 | 53.5 | 990 | 94.2 | 0.86 | 6.0 | 1.4 | 2.6 | 21 | 875 | 3900 |
| YKK4505-6 | 500 | 59.3 | 990 | 94.4 | 0.86 | 6.3 | 1.5 | 2.7 | 23 | 1071 | 4000 |
| YKK5001-6 | 560 | 64.7 | 991 | 94.7 | 0.88 | 5.4 | 1.2 | 2.4 | 29 | 907 | 4550 |
| YKK5002-6 | 630 | 72.6 | 991 | 94.9 | 0.88 | 5.6 | 1.2 | 2.4 | 32 | 1021 | 4750 |
| YKK5003-6 | 710 | 81.7 | 991 | 95.0 | 0.88 | 5.8 | 1.3 | 2.5 | 35 | 1250 | 4950 |
| YKK5004-6 | 800 | 92.0 | 991 | 95.1 | 0.88 | 6.1 | 1.4 | 2.6 | 40 | 1520 | 5250 |
| YKK5601-6 | 900 | 102.3 | 990 | 95.1 | 0.89 | 5.9 | 1.1 | 2.6 | 65 | 1317 | 6250 |
| YKK5602-6 | 1000 | 114.9 | 990 | 95.2 | 0.88 | 6.1 | 1.2 | 2.5 | 65 | 1610 | 6250 |
| YKK5603-6 | 1120 | 128.5 | 990 | 95.3 | 0.88 | 5.9 | 1.2 | 2.5 | 71 | 1805 | 6220 |
| YKK6301-6 | 1250 | 142.8 | 991 | 95.7 | 0.88 | 5.9 | 1.3 | 2.4 | 94 | 2169 | 8900 |
| YKK6302-6 | 1400 | 159.8 | 991 | 95.8 | 0.88 | 5.9 | 1.3 | 2.4 | 102 | 2433 | 9300 |
| YKK6303-6 | 1600 | 180.4 | 991 | 95.9 | 0.89 | 5.9 | 1.4 | 2.3 | 112 | 3008 | 9700 |
| YKK4004-8 | 185 | 24.5 | 742 | 93.0 | 0.78 | 5.0 | 1.5 | 2.3 | 11 | 678 | 2720 |
| YKK4005-8 | 200 | 26.2 | 742 | 93.1 | 0.79 | 4.8 | 1.5 | 2.2 | 12 | 733 | 2800 |
| YKK4006-8 | 220 | 29.4 | 742 | 93.4 | 0.77 | 5.3 | 1.7 | 2.4 | 13 | 916 | 2880 |
| YKK4502-8 | 250 | 32.2 | 744 | 93.5 | 0.80 | 5.8 | 1.5 | 2.5 | 19 | 937 | 3860 |
| YKK4503-8 | 280 | 35.9 | 744 | 93.7 | 0.80 | 5.7 | 1.5 | 2.4 | 19 | 1041 | 3860 |
| YKK4504-8 | 315 | 40.3 | 744 | 94.0 | 0.80 | 5.7 | 1.5 | 2.4 | 21 | 1171 | 3960 |
| YKK4505-8 | 355 | 44.8 | 744 | 94.2 | 0.81 | 5.7 | 1.5 | 2.4 | 23 | 1315 | 4060 |
| Spesifikasi Motor Tegangan Tinggi Seri YKK 6KV | |||||||||||
| Model | Beban 100%. | pertama | Tst | Tmaks. | Momen inersia (kg · m²) | Berat (kg) | |||||
| Kekuatan (kW) |
Saat ini (A) |
Kecepatan (putaran/menit) |
Ef. (%) |
P.F. cos.φ |
Di dalam | Tn | Tn | Motor | Memuat | ||
| YKK6304-8 | 1250 | 148.0 | 742 | 95.6 | 0.85 | 5.9 | 1.6 | 2.3 | 150 | 4819 | 9600 |
| YKK4501-10 | 185 | 24.6 | 595 | 92.9 | 0.78 | 5.0 | 1.1 | 2.4 | 22 | 785 | 3570 |
| YKK4502-10 | 200 | 27.3 | 595 | 93.0 | 0.76 | 5.2 | 1.2 | 2.6 | 22 | 930 | 3570 |
| YKK4503-10 | 220 | 29.5 | 595 | 93.3 | 0.77 | 5.1 | 1.2 | 2.4 | 24 | 1025 | 3670 |
| YKK4504-10 | 250 | 33.5 | 595 | 93.4 | 0.77 | 4.8 | 1.2 | 2.4 | 26 | 1141 | 3770 |
| YKK4505-10 | 280 | 37.0 | 595 | 93.6 | 0.78 | 4.8 | 1.1 | 2.3 | 29 | 1222 | 3870 |
| YKK5001-10 | 315 | 40.6 | 592 | 93.3 | 0.80 | 4.5 | 0.8 | 2.1 | 38 | 1068 | 4780 |
| YKK5002-10 | 355 | 45.7 | 592 | 93.4 | 0.80 | 4.5 | 0.9 | 2.1 | 38 | 1209 | 4780 |
| YKK5003-10 | 400 | 51.5 | 592 | 93.5 | 0.80 | 4.5 | 0.9 | 2.1 | 42 | 1363 | 4950 |
| YKK5004-10 | 450 | 57.7 | 592 | 93.8 | 0.80 | 4.7 | 0.9 | 2.1 | 45 | 1711 | 5000 |
| YKK5601-10 | 500 | 64.7 | 590 | 94.1 | 0.79 | 4.8 | 1.3 | 2.4 | 74 | 2480 | 6260 |
| YKK5602-10 | 560 | 69.7 | 590 | 94.3 | 0.82 | 4.7 | 1.2 | 2.2 | 82 | 2559 | 6470 |
| YKK5603-10 | 630 | 79.3 | 590 | 94.4 | 0.81 | 4.7 | 1.3 | 2.3 | 82 | 3136 | 6470 |
| YKK5604-10 | 710 | 88.3 | 590 | 94.4 | 0.82 | 4.2 | 1.1 | 2.0 | 91 | 2978 | 6680 |
| YKK6301-10 | 800 | 99.9 | 590 | 95.1 | 0.81 | 4.9 | 1.0 | 2.3 | 110 | 3034 | 8180 |
| YKK6302-10 | 900 | 110.8 | 590 | 95.3 | 0.82 | 5.0 | 1.0 | 2.2 | 119 | 3417 | 8480 |
| YKK6303-10 | 1000 | 123.0 | 590 | 95.4 | 0.82 | 4.9 | 1.0 | 2.2 | 129 | 3800 | 8780 |
| YKK6304-10 | 1120 | 136.0 | 590 | 95.5 | 0.83 | 4.8 | 1.0 | 2.1 | 136 | 4265 | 9180 |
| YKK4504-12 | 185 | 26.4 | 495 | 92.7 | 0.73 | 4.1 | 1.0 | 2.1 | 29 | 1111 | 3850 |
| YKK4505-12 | 200 | 29.0 | 495 | 92.9 | 0.72 | 4.3 | 1.1 | 2.2 | 29 | 1238 | 3850 |
| YKK5001-12 | 220 | 31.0 | 494 | 92.5 | 0.74 | 4.8 | 1.0 | 2.3 | 39 | 1199 | 4730 |
| YKK5002-12 | 250 | 35.1 | 494 | 92.7 | 0.74 | 4.7 | 1.0 | 2.2 | 39 | 1368 | 4730 |
| YKK5003-12 | 280 | 38.6 | 494 | 93.0 | 0.75 | 4.6 | 1.0 | 2.2 | 43 | 1533 | 4880 |
| YKK5004-12 | 315 | 43.4 | 494 | 93.2 | 0.75 | 4.6 | 1.0 | 2.1 | 46 | 1727 | 5030 |
| YKK5601-12 | 355 | 46.1 | 495 | 93.9 | 0.79 | 3.8 | 1.0 | 2.0 | 74 | 1908 | 6240 |
| YKK5602-12 | 400 | 53.2 | 495 | 94.0 | 0.77 | 4.1 | 1.1 | 2.1 | 74 | 2382 | 6240 |
| YKK5603-12 | 450 | 59.0 | 495 | 94.1 | 0.78 | 4.0 | 1.1 | 2.0 | 83 | 2680 | 6450 |
| YKK5604-12 | 500 | 65.4 | 495 | 94.3 | 0.78 | 4.1 | 1.1 | 2.0 | 91 | 2979 | 6660 |
| YKK6301-12 | 560 | 72.0 | 495 | 94.8 | 0.79 | 4.4 | 0.9 | 2.1 | 119 | 2695 | 8450 |
| YKK6302-12 | 630 | 81.9 | 495 | 94.9 | 0.78 | 4.4 | 0.9 | 2.1 | 119 | 3046 | 8550 |
| Spesifikasi Motor Tegangan Tinggi Seri YKK 6KV | |||||||||||
| Model | Beban 100%. | pertama | Tst | Tmaks. | Momen inersia (kg · m²) | Berat (kg) | |||||
| Kekuatan (kW) |
Saat ini (A) |
Kecepatan (putaran/menit) |
Ef. (%) |
P.F. cos.φ |
Di dalam | Tn | Tn | Motor | Memuat | ||
| YKK710-4 | 2500 | 274 | 1489 | 96.6 | 0.91 | 6.5 | 0.5 | 1.8 | 165 | 606 | 12600 |
| 2800 | 303 | 1489 | 96.6 | 0.92 | 6.5 | 0.5 | 1.8 | 180 | 684 | 13400 | |
| 3150 | 341 | 1489 | 96.7 | 0.92 | 6.5 | 0.5 | 1.8 | 200 | 772 | 14200 | |
| 3550 | 384 | 1489 | 96.7 | 0.92 | 6.5 | 0.5 | 1.8 | 210 | 885 | 15000 | |
| YKK800-4 | 4000 | 452 | 1485 | 96.7 | 0.88 | 6.5 | 0.5 | 1.8 | 270 | 971 | 21000 |
| 4500 | 509 | 1485 | 96.7 | 0.88 | 6.5 | 0.5 | 1.8 | 290 | 1106 | 22000 | |
| 5000 | 558 | 1485 | 96.8 | 0.89 | 6.5 | 0.5 | 1.8 | 315 | 1236 | 23000 | |
| YKK900-4 | 5600 | 627 | 1489 | 96.5 | 0.89 | 6.5 | 0.5 | 1.8 | 440 | 1287 | 25000 |
| 6300 | 706 | 1489 | 96.5 | 0.89 | 6.5 | 0.5 | 1.8 | 480 | 1463 | 26000 | |
| 7100 | 795 | 1489 | 96.6 | 0.89 | 6.5 | 0.5 | 1.8 | 500 | 1690 | 27000 | |
| YKK710-6 | 1800 | 200 | 992 | 96.2 | 0.90 | 6.5 | 0.8 | 1.8 | 230 | 1772 | 12600 |
| 2000 | 222 | 992 | 96.4 | 0.90 | 6.5 | 0.8 | 1.8 | 250 | 1974 | 13400 | |
| 2240 | 248 | 992 | 96.5 | 0.90 | 6.5 | 0.8 | 1.8 | 260 | 2231 | 14200 | |
| 2500 | 277 | 993 | 96.5 | 0.90 | 6.5 | 0.8 | 1.8 | 275 | 2499 | 15000 | |
| YKK800-6 | 2800 | 326 | 991 | 96.2 | 0.86 | 6.5 | 0.8 | 1.8 | 345 | 2775 | 21000 |
| 3150 | 366 | 992 | 96.3 | 0.86 | 6.5 | 0.8 | 1.8 | 410 | 3093 | 22000 | |
| 3550 | 407 | 992 | 96.4 | 0.87 | 6.5 | 0.8 | 1.8 | 430 | 3518 | 23000 | |
Nomor Bingkai. |
Polandia |
Dimensi Instalasi | Dimensi Eksternal | |||||||||||
| A | B | C | D | E | F | G | H | K | AC | IKLAN | HD | L | ||
| 355 | 2 | 630 | 900 | 315 | 80 | 170 | 22 | 71 | 355 | 28 | 1000 | 745 | 1070 | 1700 |
| 4~6 | 100 | 210 | 28 | 90 | 715 | 1100 | 1800 | |||||||
| 400 | 2 | 710 | 1000 | 375 | 90 | 170 | 25 | 81 | 400 | 35 | 1100 | 795 | 1200 | 1890 |
| 4~8 | 335 | 110 | 210 | 28 | 100 | 765 | 1200 | 1890 | ||||||
| 450 | 2 | 800 | 1120 | 400 | 100 | 210 | 28 | 90 | 450 | 1200 | 835 | 1350 | 2030 | |
| 4 | 355 | 120 | 210 | 32 | 109 | 815 | 1350 | 2030 | ||||||
| 6~12 | 355 | 130 | 250 | 32 | 119 | 815 | 1350 | 2070 | ||||||
| 500 | 2 | 900 | 1250 | 560 | 110 | 210 | 28 | 100 | 500 | 42 | 1320 | 935 | 1520 | 2560 |
| 4 | 475 | 130 | 250 | 32 | 119 | 880 | 1500 | 2300 | ||||||
| 6~12 | 475 | 140 | 250 | 36 | 128 | 880 | 1500 | 2300 | ||||||
| 560 | 2 | 1000 | 1400 | 560 | 130 | 250 | 32 | 119 | 560 | 1500 | 900 | 1830 | 2900 | |
| 4 | 500 | 150 | 250 | 36 | 138 | 900 | 1840 | 2430 | ||||||
| 6~12 | 500 | 160 | 300 | 40 | 147 | 900 | 1840 | 2430 | ||||||
| 630 | 2 | 1120 | 1600 | 560 | 140 | 250 | 36 | 128 | 630 | 48 | 1640 | 935 | 2000 | 3180 |
| 4 | 530 | 170 | 300 | 40 | 157 | 935 | 2000 | 2750 | ||||||
| 6~12 | 530 | 180 | 300 | 45 | 165 | 935 | 2000 | 2750 | ||||||
Spesifikasi Teknis
| Tiga-fase, 50/60 Hz |
|
|
| Voltase | 380~11000 V | |
| Nilai keluaran | hingga 12500kW | |
| Jumlah tiang | 2,4,6,8,10,12 | |
| Ukuran bingkai | 350~1000mm | |

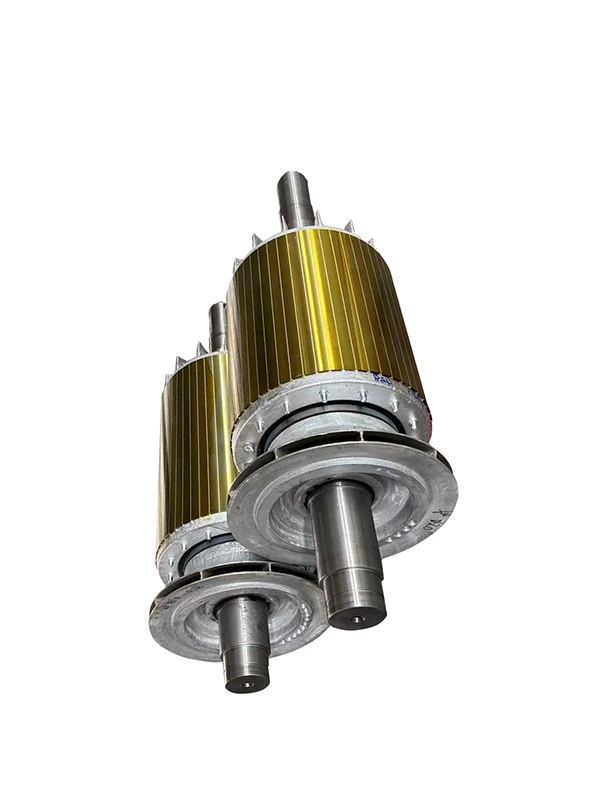

| Sangkar tupai aluminium cor untuk rotor | ||
| Tingkat perlindungan | IP54/IP55 (Tertutup sepenuhnya) | |
| Tugas Berkelanjutan | S1 | |

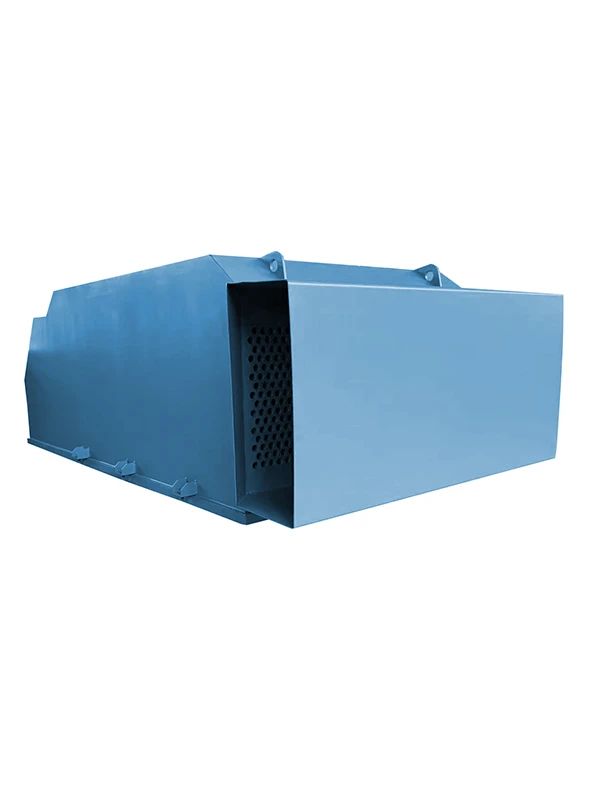

| Pendinginan | IC611/CACA | |
| Tugas Berkelanjutan | S1 | |
| Isolasi | F dengan kenaikan suhu kelas (120ºC). | |
| Tugas Berkelanjutan | S1 | |
| Dengan perlindungan termal PT100(3-kawat) | ||

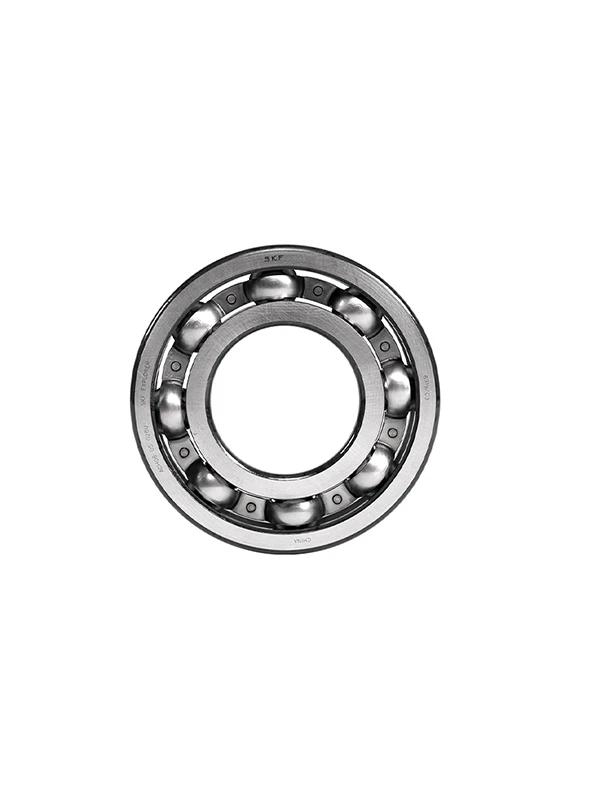

| Bantalan rol untuk kapasitas beban maksimum | ||
| Fitur opsional lainnya berdasarkan permintaan dari pelanggan | ||
Sertifikat
Tag populer: motor pompa industri tegangan tinggi, produsen, pemasok, pabrik motor pompa industri tegangan tinggi Cina
Berikutnya
Motor Pembangkit Listrik Ac Tegangan TinggiKirim permintaan
